Stainless Steel Angle/Section

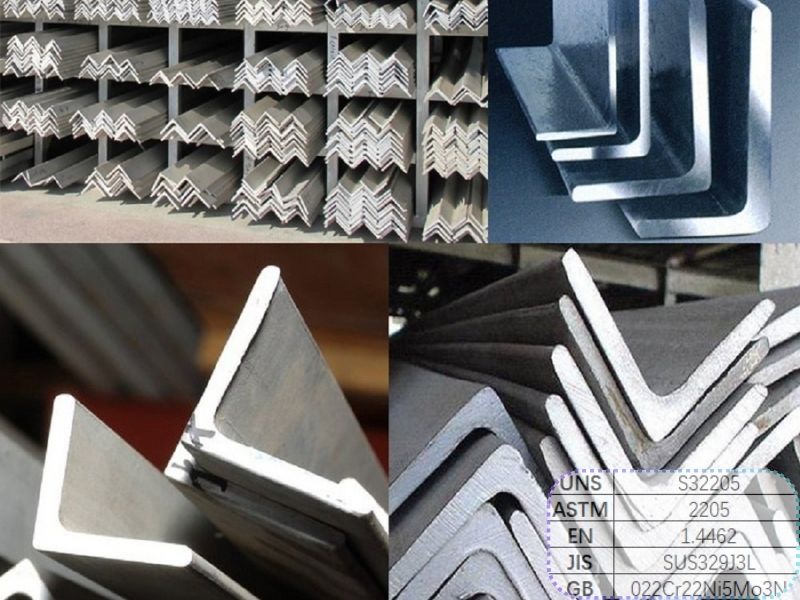

2205/2507 Stainless Steel Angle/Section/H channel
2205 stainless steel angle is a duplex stainless steel grade known for its excellent combination of strength and corrosion resistance. This grade includes approximately 22% chromium, 5% nickel, and 3% molybdenum, enhancing its resistance to pitting, crevice corrosion, and stress corrosion cracking. Ideal for harsh environments with high chloride levels, such as marine, oil and gas industries, and chemical processing, 2205 angle is also used in pollution control equipment and high-strength structural components. This alloy's blend of strength and corrosion resistance makes it highly suitable for demanding applications, particularly where durability and long-term performance in challenging conditions are essential.
Dora@inox-pipe.com

PRODUCT INTRODUCTION

SPECIFICATION PARAMETERS


NameStainless Steel Angle/Section/Flat
TechniqueCR/HR
StandardAISI,ASTM,DIN,JIS,GB,JIS,SUS,EN,etc.
Steel Grade

201;301;304;310S;316;321;430;2205;2507;904,etc.

Tolerance+/-0.01-1.0%
LengthCustomization
Thickness0.4-30mm / Customized
ServiceOEM, Customized Processing Service
Processing TypeCutting,Bending,Machining,Fabrication

PRODUCT MATERIAL

CHEMICAL COMPOSITION:

GradeCSiMnpSNiCrMoN
201≤0 .15≤0.8≤1.0≤0.04≤ 0.0317.5-18.519.5-20.56.0-6.50.18-0.20
904L≤0 .02≤1.0≤2.0≤0.045≤0.03523.0-28.019.0-23.04.0-5.0≤0.1
654SMO≤0 .02≤0 .52.0-4.0≤0.03≤0.00521.0-23.024.0-25.07.0-8.00.45-0.55
253MA0.05-0.11.4-2.0-≤0.045≤ 0.0310.0-12.020.0-22.0-0.14-0.20
AL-6XN≤0 .02≤1.0≤2.0≤0.04≤ 0.0123.5-25.520.0-22.06.0-7.00.18-0.25
304≤0 .08≤1.0≤2.0≤0.045≤ 0.038.0-10.518.0-20.0--
304L≤0.03≤1.0≤2.0≤0.035≤ 0.039.0-13.018.0-20.0--
309S≤0.08≤1.0≤2.0≤0.045≤ 0.0312.0-15.022.0-24.0--
310S≤0.08≤1.5≤2.0≤0.035≤ 0.0319.0-22.024.0-26.0--
316≤0.08≤1.0≤2.0≤0.045≤ 0.0310.0-14.016.0-18.02.0-3.0-
316L≤0 .03≤1.0≤2.0≤0.045≤ 0.0312.0-15.016.0 -18.02.0 -3.0-
S32760≤ 0 .03≤1.0≤1.0≤0.035≤ 0.0156.0-8.024.0 -26.03.0-4.00.2-0.3
S32750≤ 0 .03≤0.8≤1.2≤0.035≤0.026.0-8.024.0-26.02.0-3.00.24-0.32

MECHANICAL PROPERTIES:

PACKING & DELIVERY

We are located in China with global sales.

Products can be sent to your warehouse by sea, air, international express, door-to-door and various other means.
