Stainless Steel Angle/Section

‹

  • 430 Stainless Steel Angle/Section/U channel

›

430 Stainless Steel Angle/Section/U channel

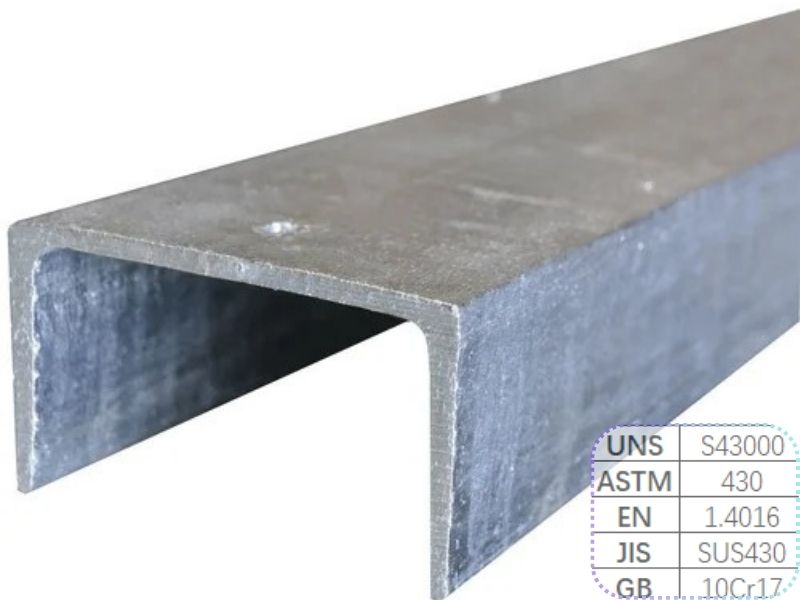

430 stainless steel U-channel is a ferritic, low carbon stainless steel known for its good corrosion resistance and formability, along with its magnetic properties. It contains a high amount of chromium, providing decent resistance to atmospheric corrosion and moderate resistance against many acids and bases. 430 U-channel is often used in consumer appliances, automotive trim, interior architecture, and components requiring magnetic properties. It's also suitable for certain chemical applications due to its resistance to nitric acid and organic acids. This grade is popular in applications where moderate corrosion resistance, formability, and aesthetic appeal are required.
Dora@inox-pipe.com

PRODUCT INTRODUCTION

SPECIFICATION PARAMETERS


NameStainless Steel Angle/Section/Flat
TechniqueCR/HR
StandardAISI,ASTM,DIN,JIS,GB,JIS,SUS,EN,etc.
Steel Grade

201;301;304;310S;316;321;430;2205;2507;904,etc.

Tolerance+/-0.01-1.0%
LengthCustomization
Thickness0.4-30mm / Customized
ServiceOEM, Customized Processing Service
Processing TypeCutting,Bending,Machining,Fabrication

PRODUCT MATERIAL

CHEMICAL COMPOSITION:

GradeCSiMnpSNiCrMoN
201≤0 .15≤0.8≤1.0≤0.04≤ 0.0317.5-18.519.5-20.56.0-6.50.18-0.20
904L≤0 .02≤1.0≤2.0≤0.045≤0.03523.0-28.019.0-23.04.0-5.0≤0.1
654SMO≤0 .02≤0 .52.0-4.0≤0.03≤0.00521.0-23.024.0-25.07.0-8.00.45-0.55
253MA0.05-0.11.4-2.0-≤0.045≤ 0.0310.0-12.020.0-22.0-0.14-0.20
AL-6XN≤0 .02≤1.0≤2.0≤0.04≤ 0.0123.5-25.520.0-22.06.0-7.00.18-0.25
304≤0 .08≤1.0≤2.0≤0.045≤ 0.038.0-10.518.0-20.0--
304L≤0.03≤1.0≤2.0≤0.035≤ 0.039.0-13.018.0-20.0--
309S≤0.08≤1.0≤2.0≤0.045≤ 0.0312.0-15.022.0-24.0--
310S≤0.08≤1.5≤2.0≤0.035≤ 0.0319.0-22.024.0-26.0--
316≤0.08≤1.0≤2.0≤0.045≤ 0.0310.0-14.016.0-18.02.0-3.0-
316L≤0 .03≤1.0≤2.0≤0.045≤ 0.0312.0-15.016.0 -18.02.0 -3.0-
S32760≤ 0 .03≤1.0≤1.0≤0.035≤ 0.0156.0-8.024.0 -26.03.0-4.00.2-0.3
S32750≤ 0 .03≤0.8≤1.2≤0.035≤0.026.0-8.024.0-26.02.0-3.00.24-0.32

MECHANICAL PROPERTIES:

PACKING & DELIVERY

We are located in China with global sales.

Products can be sent to your warehouse by sea, air, international express, door-to-door and various other means.
