Stainless Steel Angle/Section

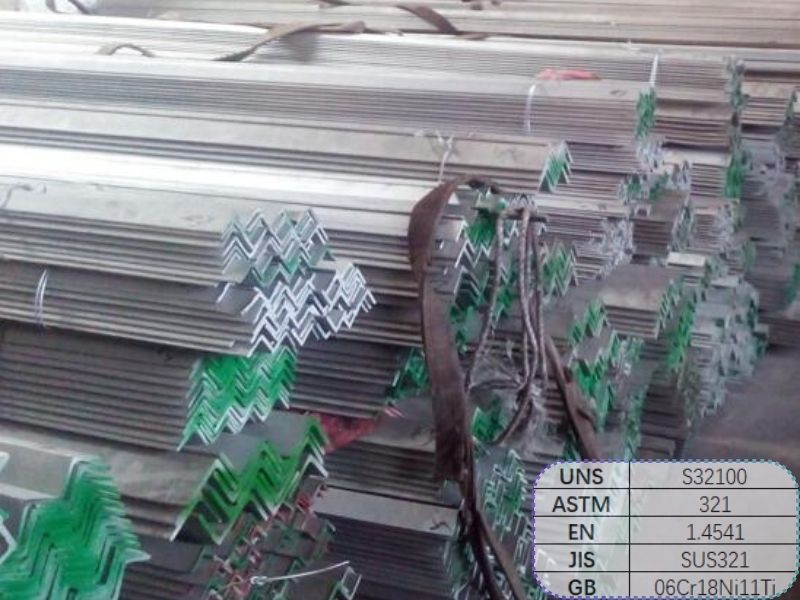

321 Stainless Steel Angle/Section/U channel
321 stainless steel sections, an austenitic chromium-nickel steel alloyed with titanium, are known for their excellent resistance to intergranular corrosion and stability in high-temperature environments. The addition of titanium limits chromium carbide formation, enhancing high-temperature strength. These sections are ideal for applications involving intermittent heating within the carbide precipitation range, up to 900°C. Common uses include aerospace components, exhaust manifolds, heat exchangers, and expansion joints. They are also favored in the chemical processing industry. 321's resistance to temperature-induced corrosion and overall durability make it suitable for various demanding industrial applications, especially where weldability and strength are crucial at high temperatures.
Dora@inox-pipe.com

PRODUCT INTRODUCTION

SPECIFICATION PARAMETERS


NameStainless Steel Angle/Section/Flat
TechniqueCR/HR
StandardAISI,ASTM,DIN,JIS,GB,JIS,SUS,EN,etc.
Steel Grade

201;301;304;310S;316;321;430;2205;2507;904,etc.

Tolerance+/-0.01-1.0%
LengthCustomization
Thickness0.4-30mm / Customized
ServiceOEM, Customized Processing Service
Processing TypeCutting,Bending,Machining,Fabrication

PRODUCT MATERIAL

CHEMICAL COMPOSITION:

GradeCSiMnpSNiCrMoN
201≤0 .15≤0.8≤1.0≤0.04≤ 0.0317.5-18.519.5-20.56.0-6.50.18-0.20
904L≤0 .02≤1.0≤2.0≤0.045≤0.03523.0-28.019.0-23.04.0-5.0≤0.1
654SMO≤0 .02≤0 .52.0-4.0≤0.03≤0.00521.0-23.024.0-25.07.0-8.00.45-0.55
253MA0.05-0.11.4-2.0-≤0.045≤ 0.0310.0-12.020.0-22.0-0.14-0.20
AL-6XN≤0 .02≤1.0≤2.0≤0.04≤ 0.0123.5-25.520.0-22.06.0-7.00.18-0.25
304≤0 .08≤1.0≤2.0≤0.045≤ 0.038.0-10.518.0-20.0--
304L≤0.03≤1.0≤2.0≤0.035≤ 0.039.0-13.018.0-20.0--
309S≤0.08≤1.0≤2.0≤0.045≤ 0.0312.0-15.022.0-24.0--
310S≤0.08≤1.5≤2.0≤0.035≤ 0.0319.0-22.024.0-26.0--
316≤0.08≤1.0≤2.0≤0.045≤ 0.0310.0-14.016.0-18.02.0-3.0-
316L≤0 .03≤1.0≤2.0≤0.045≤ 0.0312.0-15.016.0 -18.02.0 -3.0-
S32760≤ 0 .03≤1.0≤1.0≤0.035≤ 0.0156.0-8.024.0 -26.03.0-4.00.2-0.3
S32750≤ 0 .03≤0.8≤1.2≤0.035≤0.026.0-8.024.0-26.02.0-3.00.24-0.32

MECHANICAL PROPERTIES:

PACKING & DELIVERY

We are located in China with global sales.

Products can be sent to your warehouse by sea, air, international express, door-to-door and various other means.
