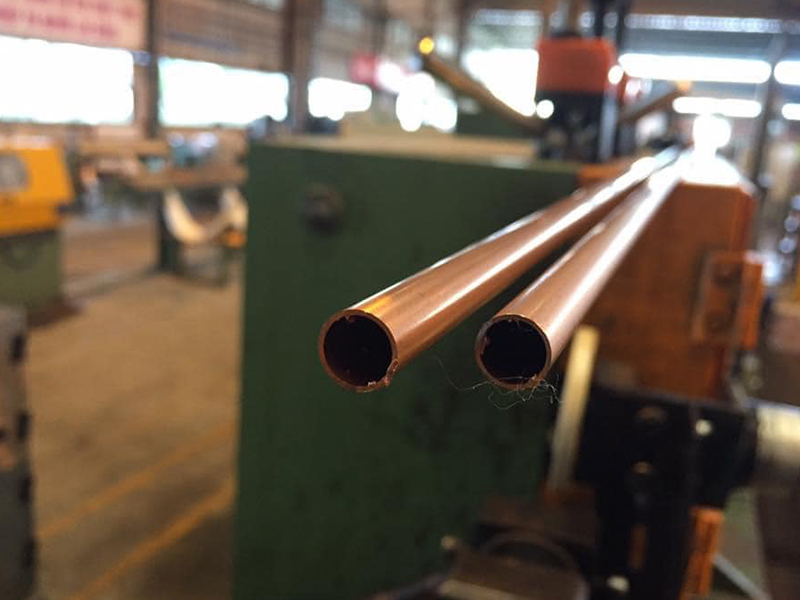

C10100 Copper seamless Pipe/Tube

Copper tubes are also known as copper tubes. A type of non-ferrous metal pipe, which is a pressed and drawn seamless tube. Copper pipe has strong corrosion resistance, is not easy to oxidize, and is not easy to chemically react with some liquid substances, and is easy to bend and shape.

Dora@inox-pipe.com



PRODUCT INTRODUCTION

SPECIFICATION PARAMETERS

Item	Copper seamless Pipe/Tube
Type	Straight copper pipe,Capillary copper pipe
Standard	GB/T1527-2006,JIS H3300-2006,ASTM B75M,ASTMB42,ASTMB111,ASTMB395,ASTM B359,ASTM B188,ASTM B698,ASTM B640,etc
Shape	Round,Square,Rectangular,Oval,half-round
Round	OD:2-914mm (1/16"-36") WT:0.2-120mm(SCH5S-SCH160S)
Square	Size:22-10161016mm(1/16"-40") WT:0.2-120mm
Rectangular	Size:24-10161219mm(1/16"-48") WT:0.2-120mm
Length	1m,2m,3m,6m,or as required



PRODUCT MATERIAL

CHEMICAL COMPOSITION:

Grade			Chemical Composition(%)
	GB	JIS	Cu+Ag	P	Bi	Sb	As	Fe	Ni	Pb	Sn	S	Zn	O
Refined Copper	T1	C1020	99.95	0.001	0.001	0.002	0.002	0.005	0.002	0.003	0.002	0.005	0.005	0.02
	T2	C1100	99.9	-	0.001	0.002	0.002	0.005	-	0.005	-	0.005	-	-
	T3	C1221	99.7	-	0.002	-	-	-	-	0.01	-	—	-	-
Oxygen Free Copper	TU0	C1011	99.99	0.0003	0.0001	0.0004	0.0005	0.001	0.001	0.0005	0.0002	0.0015	0.0001	0.0005
	TU1	C1020	99.97	0.002	0.001	0.002	0.002	0.004	0.002	0.003	0.002	0.004	0.003	0.002
	TU2	C1020	99.95	0.002	0.001	0.002	0.002	0.004	0.002	0.004	0.002	0.004	0.003	0.003

MECHANICAL PROPERTIES:

Grade (JIS)	Temper	Vickers Hardness (HV)	Tensile Strength (Mpa)	Elongation (%)
C1100C1201C1220etc.	M (Soft)	≤70	≥195	≥30
	Y4 (1/4H)	60-95	215-295	≥25
	Y2 (1/2H)	80-110	245-345	≥8
	Y (Full Hard)	90-120	295-395	≥3
	T (Extra Hard)	≥110	≥350	-



PACKING & DELIVERY
