Q235/Q345 Spiral Pipe/Tube

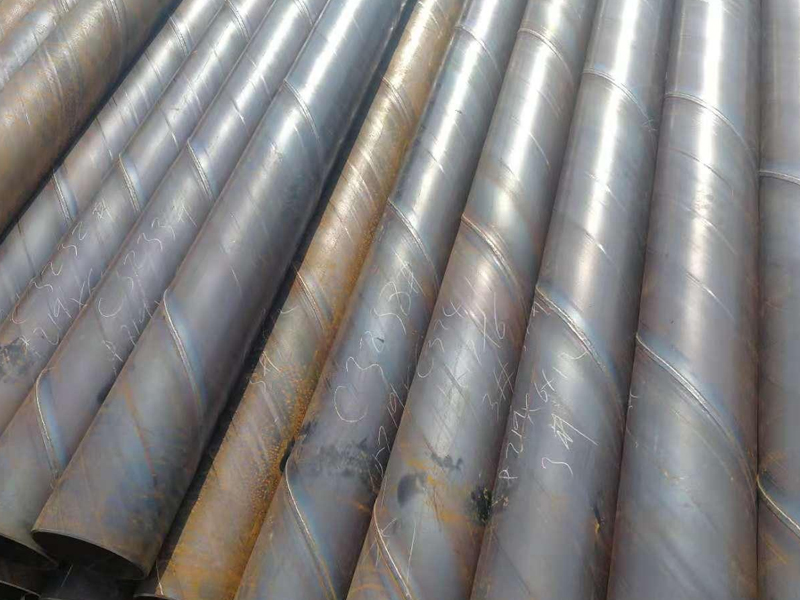

Spiral welded pipe: It is made by rolling low-carbon carbon structural steel or low alloy structural steel strips into pipe billets at a certain helix angle (called forming angle), and then welding the pipe seams. It can produce large-diameter steel pipes using narrower strip steel.

Dora@inox-pipe.com



PRODUCT INTRODUCTION

SPECIFICATION PARAMETERS

Product Name	Spiral Welded Pipe/Tube
Grade	Q195 = S195 / A53 Grade A
	Q235 = S235 / A53 Grade B / A500 Grade A / STK400 / SS400 / ST42.2
	Q345 = S355JR / A500 Grade B Grade C
Outer Diameter	ERW / HFW	LSAW / DSAW	SSAW / HSAW	RHS	SHS
	1/8 - 20 inch	12 - 56 inch	8 - 126 inch	40 x 20 mm	15 x 15 mm
	(10.3-508 mm)	(323.8-1,420 mm)	(219.1-3,200 mm)	-1,000 x 800 mm	-1,000× 1,000 mm
Wall Thickness	0.4 - 16 mm	6.0 - 40 mm	6.0 - 26 mm	1.0 - 30 mm	0.6 - 30 mm
Length	5.8~12.0 m or as customized
Surface Treatment	Prime quality (bared, oiled, color paint, 3LPE, or other anti-corrosive treatment)
Inspection	With Chemical Composition and Mechanical Properties Analysis;
	Dimensional and Visual Inspection, also with Nondestructive Inspection.



PRODUCT MATERIAL

CHEMICAL COMPOSITION:

Grade	C	Si	Mn	P	S	Cu	Cr	Ni
Cor-ten A	0.12	0.25-0.75	0.20-0.50	0.01-0.2	0.03	0.25-0.55	0.5-1.25	0.65
Cor-ten B	0.16	0.3-0.5	0.8-1.25	0.03	0.03	0.25-0.40	0.4-0.65	≤0.4
SPA-H	0.12	0.2-0.75	0.60	0.07-0.15	0.035	0.25-0.55	0.3-1.25	0.65
9CuPCrNi-A	0.12	0.2-0.75	0.20-0.50	0.07-0.15	0.040	0.25-0.55	0.3-1.25	0.65
Q235NH	0.13	0.10-0.40	0.20-0.60	0.03	0.030	0.25-0.55	0.40-0.80	0.65
Q295NH	0.15	0.10-0.50	0.30-1.00	0.03	0.030	0.25-0.55	0.40-0.80	0.65
Q355NH	0.16	0.5	0.50-1.50	0.03	0.030	0.25-0.55	0.40-0.80	0.65
Q415NH	0.12	0.65	1.10	0.025	0.030	0.20-0.55	0.30-1.25	0.12-0.65
Q460NH	0.12	0.65	1.50	0.025	0.030	0.20-0.55	0.30-1.25	0.12-0.65
Q500NH	0.12	0.65	2.0	0.025	0.030	0.20-0.55	0.30-1.25	0.12-0.65
Q550NH	0.12	0.65	2.0	0.025	0.030	0.20-0.55	0.30-1.25	0.12-0.65
Q265GNH	0.12	0.10-0.40	0.20-0.50	0.07-0.12	0.020	0.2-0.45	0.30-0.65	0.25-0.50
Q295GNH	0.12	0.10-0.40	0.20-0.50	0.07-0.12	0.020	0.25-0.45	0.30-0.65	0.25-0.50
Q310GNH	0.12	0.25-0.75	0.20-0.50	0.07-0.12	0.020	0.25-0.55	0.30-1.25	0.65
Q355GNH	0.12	0.20-0.75	1.00	0.07-0.15	0.020	0.25-0.55	0.30-1.25	0.65
Q345GNHL	0.12	0.25-0.75	0.20-0.50	0.07-0.15	0.035	0.25-0.55	0.30-0.65	0.65
Q295GQR2	0.12	0.10-0.40	0.20-0.50	0.06-0.12	0.020	0.25-0.45	0.30-0.65	0.25-0.5
Q295GQR3	0.12	0.20-0.40	0.25-0.55	0.06-0.12	0.020	0.25-0.50	---	---
Q345NQR2	0.12	0.25-0.75	0.20-0.50	0.06-0.12	0.020	0.25-0.50	0.3-1.25	0.12-0.65
Q345NQR3	0.12	0.20-0.50	0.25-0.70	0.06-0.12	0.020	0.25-0.50	---	---
Q400NQR1	0.12	0.75	1.10	0.025	0.008	0.25-0.55	0.3-1.25	0.12-0.65
Q450NQR1	0.12	0.75	1.50	0.025	0.008	0.25-0.55	0.3-1.25	0.12-0.65
Q500NQR1	0.12	0.75	2.00	0.025	0.008	0.25-0.55	0.3-1.25	0.12-0.65
Q550NQR1	0.16	0.75	2.00	0.025	0.008	0.25-0.55	0.3-1.25	0.65

MECHANICAL PROPERTIES:

Carbon content (wt.%)	Microstructure	Properties	Examples
Low-carbon steel	< 0.25	Ferrite, pearlite	Low hardness and cost. High ductility, toughness, machinability and weldability	AISI 304, ASTM A815, AISI 316L
Medium-carbon steel	0.25 – 0.60	Martensite	Low hardenability, medium strength, ductility and toughness	AISI 409, ASTM A29, SCM435
High-carbon steel	0.60 – 1.25	Pearlite	High hardness, strength, low ductility	AISI 440C, EN 10088-3



PACKING & DELIVERY
